Simplex Half / Full Duplex Fiber Optic Cable Production Line For 2 Core Indoor Cable

Name: Simplex Half Full Duplex Fiber Optic Cable Production Line For 2 Core Indoor Cable
Brand: Herrman
Price: 1 USD

China Simplex Half / Full Duplex Fiber Optic Cable Production Line For 2 Core Indoor Cable wholesale

Brand Name : Herrman

Model Number : /

Certification : ISO9001:2015,CE

Place of Origin : China

MOQ : 1set

Price : By Negotiation

Payment Terms : L/C, T/T, D/A, D/P，By Negotiation

Supply Ability : 20 sets per month

Delivery Time : 55 working days

Packaging Details : Seaworthy packing suitable for export

Name : Simplex half duplex and full duplex fiber optic cable production line

Aramid pay-off tension : 0.5N-3N±0.05N(adjustable)

Size of take-up reel : PN400～PN630

Size of optical fiber pay-off reel : PN 235 PN400mm

Cable size : 2.0*3.0mm,2.0*5.0mm

Aramid cops : 10

Motor : SIEMENS

Bearing : NSK

HS Code : 84794000

Color : Color plate provided by customer

Warranty : 1 year

Contact Now

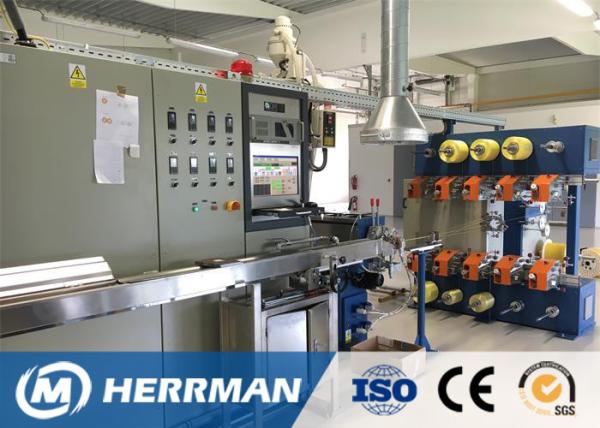

simplex half duplex and full duplex fiber optic cable production line for 2core indoor cable

Description

The simplex half duplex and full duplex fiber optic cable production line is mainly used to produce 2 core indoor optical cable, Include: Simplex cable, Duplex cable, FTTH cable and so on.

Line configuration

- 2 spools optical fiber pay-off

- Preheating and dry device

- One extruder SJ30×25 one self-center head

(With feed, compound dryer device and master batch)

- 4M Hot water trough

- Hot water tank

- 12 M cooling trough

- Cooling water tank (with refrigerating device)

- Blow dryer device

- Diameter control system

- 400 capstan

- Dual reel take-up for tight buffer fiber

- Electrical control system

Main Specification

Line speed	150m/min
Operation speed	120m/min simplex cable
Operation speed	80m/min (2.0*3.0mm cable)
Cable size	Φ2.0mm,Φ3.0mm 2.03.0mm,2.05.0mm
Size of optical fiber pay-off reel	PN 235 PN400mm
Size of take-up reel	PN400～PN630
Aramid cops	10
Aramid pay-off tension	0.5N-3N±0.05N(adjustable)

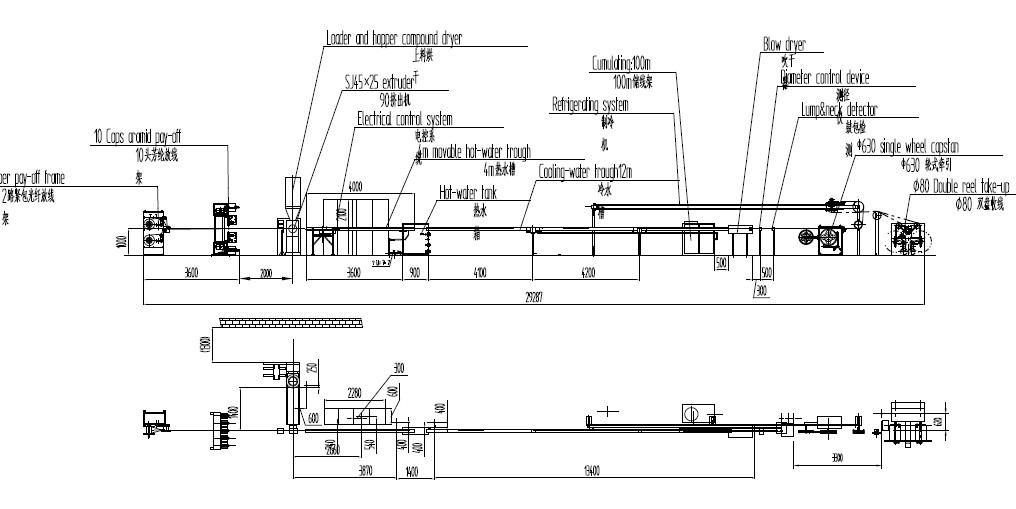

Drawing for reference

Simplex Half / Full Duplex Fiber Optic Cable Production Line For 2 Core Indoor Cable
